盲孔储油钢衬套内表面喷涂二硫化钼，具有摩擦系数低、耐磨性好等优点，可在无油或少油条件下工作。产品广泛应用于工程机械、重型高负荷设备等领域。
工艺：多用途炉渗碳
渗碳层厚度：1-1.5毫米
渗碳层硬度：HRC58-62
在内表面喷涂二硫化钼
绩效指数 | 数据 | |
硬度 | HRC | ≥650 |
最大负载 | N/mm² | 100 |
最大线速度 | N/mm² | 1.5 |
最大PV值 | N/m m²m/s | 2.5 |
工作温度限制 | °C | -70~+300 |
线性膨胀系数 | 10-5/°C | 1.1 |
Product Advantages:

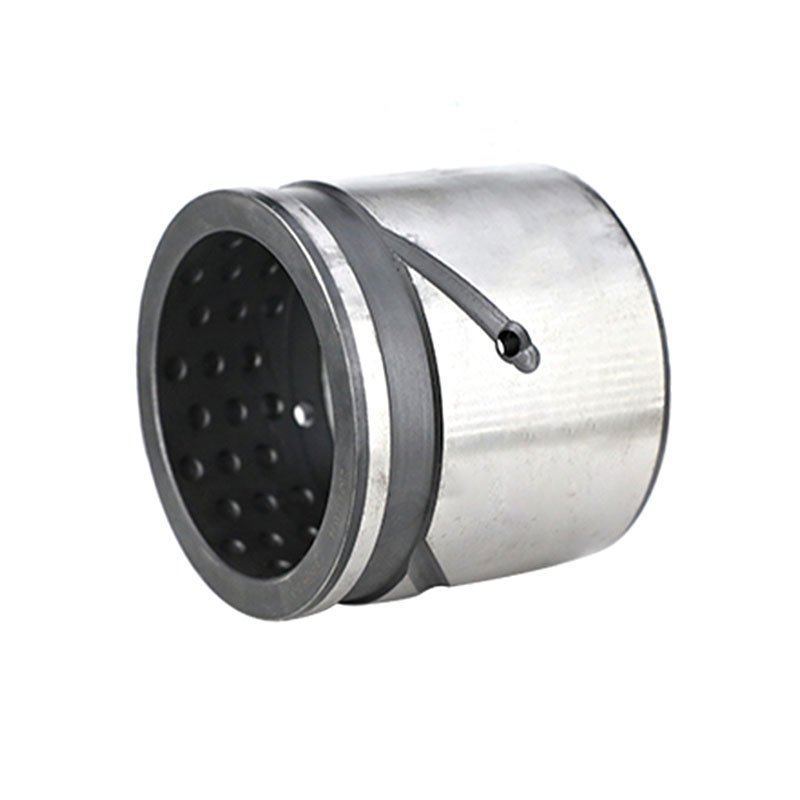

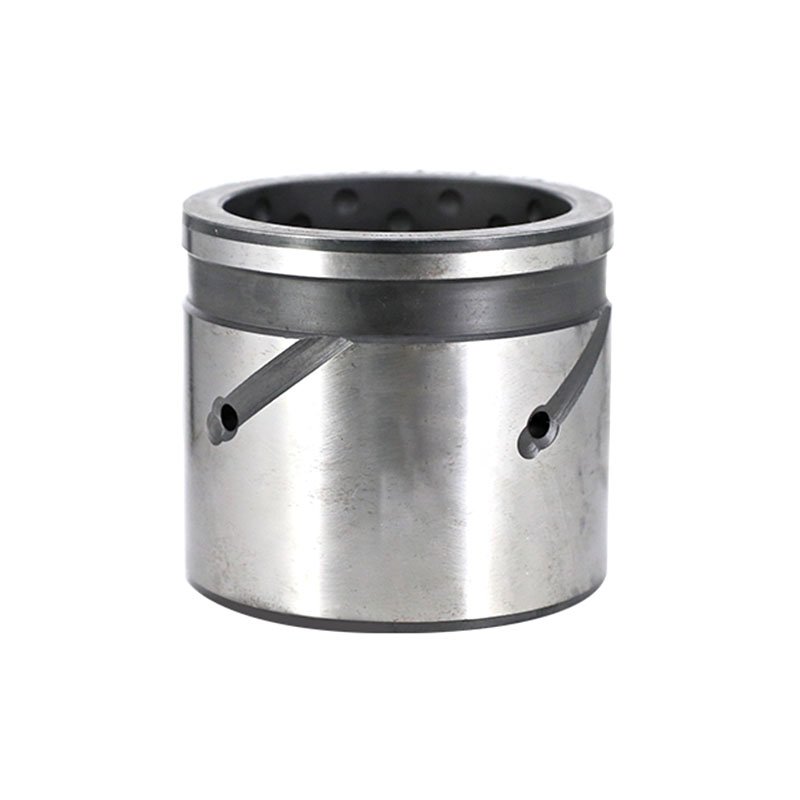

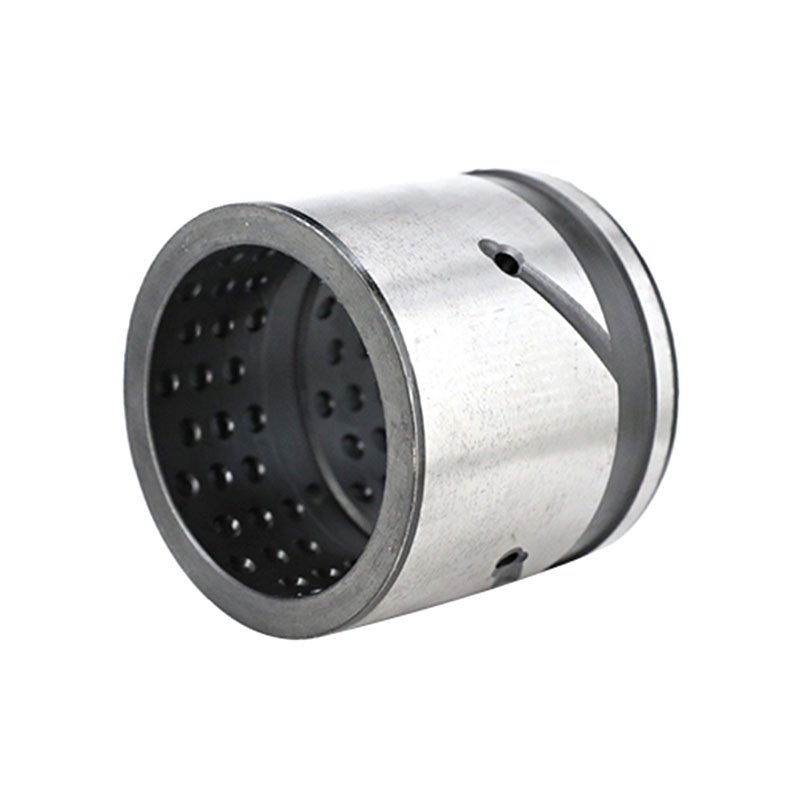

The inner wall of the bushing is evenly distributed with blind holes with conical cross-section.
The lubricating oil wedge is formed naturally during the grinding process of the inner hole of the bushing
The oil storage capacity of oil pocket is large, which is 3~5 times of that of ordinary oil tank and can be free from maintenance for a long time.
The oil pockets are evenly distributed on the inner wall, and the center distance of the oil pockets in the circumferential direction is fixed. No matter how large the bushing is, it only needs a small rotation angle to fill the inner surface of the bushing with the oil cloth,without lubrication dead area.
The oil pockets evenly distributed in the inner holes do not damage the bearing capacity of the inner wall of the bushing and prolong the service life of the bushing.
Material:20CrMnTi,20CrMo and other low carbon alloy steels
Surface treatment: Molybdenum disulfide spraying
